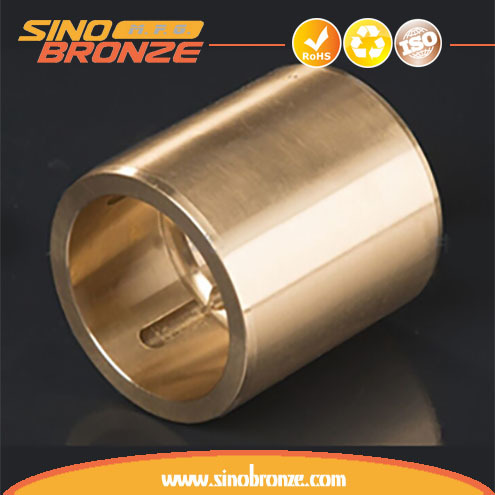

Solid Casting Bronze Bearing C83600, LG2, CuSn5ZnPb, RG5, CuSn5Zn5Pb5-C, CC491K, G-CuSn5ZnPb
 • SINOBRONZE with C83600 LEADED RED BRASS


C83600 (SAE40 CuSn5Zn5Pb5) Leaded Red Brass whichcontain 5% lead,Sn 5%,Zn 5%.it has excellent machinability, good strength andcorrosion resistance.
Lead can be added to any brass to increase machinabilityand provide pressure tightness by sealing the shrinkage pores.

SINO BRONZE CO., LTD. uses C83600 brass to produce architectural hardware, general purpose screw machine parts, screws,valves, fittings, bearings and specialty fasteners.




 • Chemical Composition C83600 LEADED RED BRASS


Cu

Sn

Pb

Zn

Fe

Ni

Sb

P

S

Al

Mn

Si

84.00-86.00

4.00-6.00

4.00-6.00

4.00-6.00

030

1.0

0.0

0.05

0.08

0.005

N/A

0.005



 • Mechanical Properties C83600 LEADED RED BRASS


Tensile Strength
(min)

Yield Strength
(at .5% extention under load min)

Elongation
(in 2in. or 50mm min, %)

Brinell Hardness
(min)

Remarks

Ksi

MPa

Ksi

MPa

-

-

-

35

245

20

140

10

65

-



 • Typical Applications C83600 LEADED RED BRASS

• Bearings       • Bushings       • Screws       • Valves
• Fittings   • Architectural hardware   • Screw machine parts
